1. The equipment of institutions;

Framework is mainly composed of institution, snapping piece structure, pneumatic control system and electric control system of four most.

2. Electrical parts;

1), contactor, People/chint(Hangzhou)

2).button: People/chint(Hangzhou)

3)breakers: People/chint(Hangzhou)

4), main control vacuum electromagnetic valve: the DE guest (Taiwan);

5) and other pneumatic components: DE guest (Taiwan);

6, fan: and drunkenness (Zen Buddhism, Lida).

3. The mechanical;

1), mesa: special waterproof board;

2), mesa: imported industrial felt (black);

3), broken rod: solid wood (grey).

. 4. Technical parameters;

1), snapping bar: type 2 + 1;

2), mesa size: 4200 * 3200 mm;

3), to break off the slice thickness: 3 ~ 19 mm;

4), power: 4 kw;

5), mesa height: 900 + 20 mm.

Note: five.

1), on the line to achieve automatic, automatic transmission, automatic cutting machine, automatic break function;

2), the operator: the piece: 0 people (automatic tablet without personnel operation);

Cutting: 1 people understand the computer basic operation ();

Bye the piece: 1-2 people (glass break experience);

3), the cutting efficiency: 30-70 seconds per piece;

4), features: a, no special requirements to operators, the operation is simple, convenient for management;

B, safe and efficient, automatic on Taiwan effectively to ensure the safe operation and to prevent the occurrence of broken glass, automatic conveying device to reduce the workload of the operator;

C, high cutting precision, good stability and can satisfy the need of all kinds of production, and effectively safeguard processes after the processing quality and reduce the processing difficulty;

D, high IQ cutter optimization software, can significantly improve the utilization rate of glass to reduce the production cost, powerful gallery can guarantee can do all kinds of shaped glass cutting equipment, can satisfy the demands of various orders cutting;

E, cutting machine, automatic filling and pressure automatic mediation function, effectively guarantee the stability of glass cutting machine and cutting effect;

, equipment to the buyer factory car, electricity, gas and water shall be the responsibility of the buyer

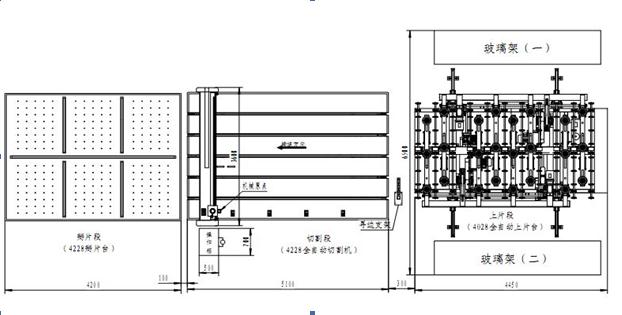

6. Attachment: floor plan. (can be ordered according to the site layout)

Note: the table with each additional one station, line the total length of 4.6 meters.
