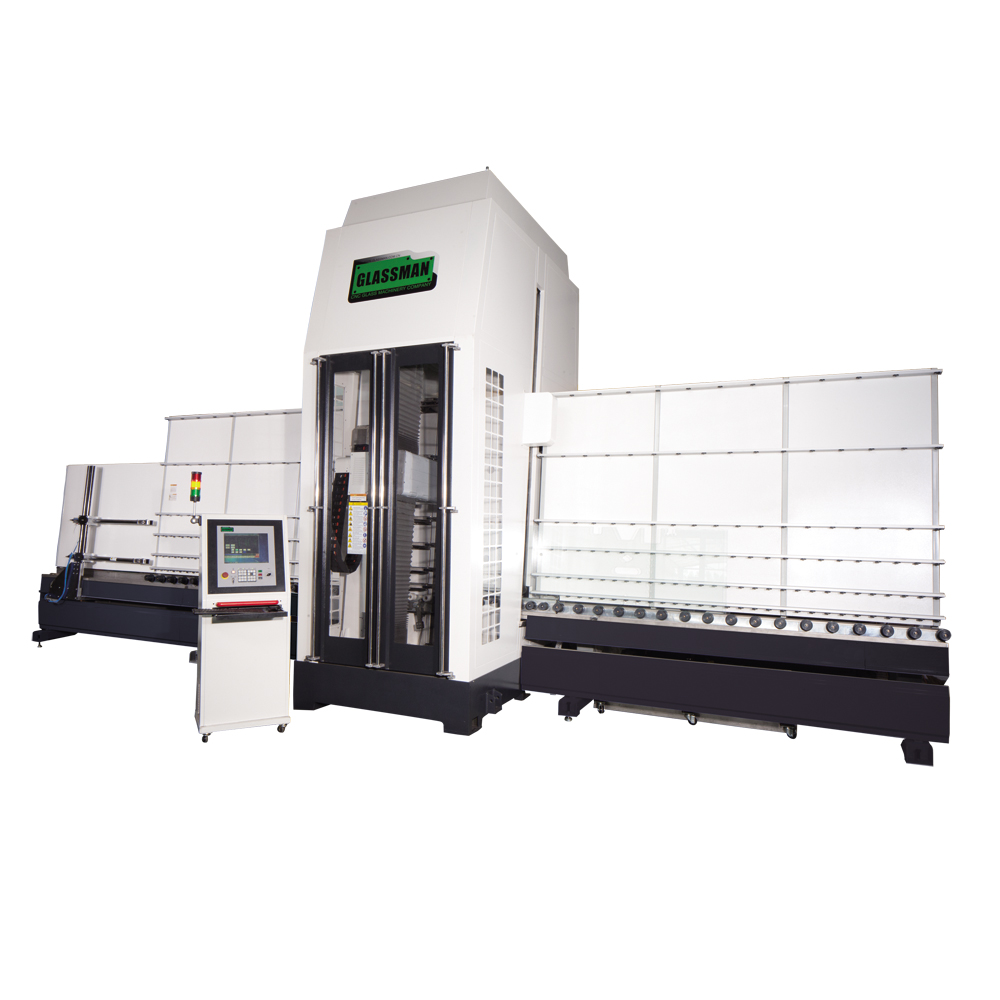

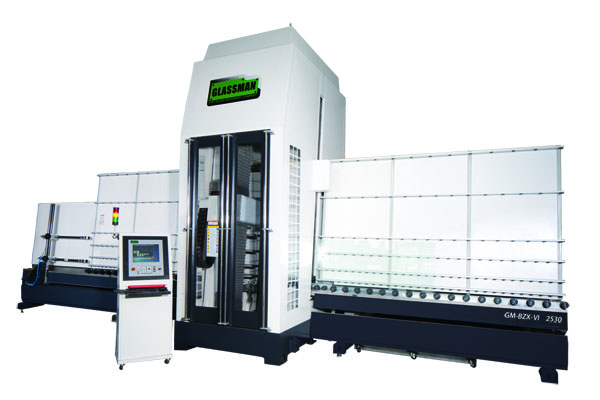

GM-BZX-VI CNC Vertical drilling and milling machine
GM-BZX-VI CNC Vertical drilling and milling machine
Machine features:
Perfect Solution for processing Holes and Notches Perfect Choice of CNC Machine for processing Frameless Shower Door, Glass Curtain Wall. Structure Glass, and etc.
1.GM-BZX-VI uses advanced Rexroth control system to achieve dynamic management of each axis. wHich precisely controls its cutting speed to meet the high demand of complicated design and quality.
2.The software Super CAM is developed by Glassman software team. ThiS software has a drawing database that consists of 37 standard shapes. Any operators can simply input the parameters that results in best processing route.
3.5 axis structure allows the completion of drilling,milling,arising in one cycle.
4.GM-BZX-VI has two inner coolant Electro-spindles,and its output power is 7.5KW with maximum speed 12,000rpm.
5.Bar Code System is also available in option.
 |
 |
| Tools | products |

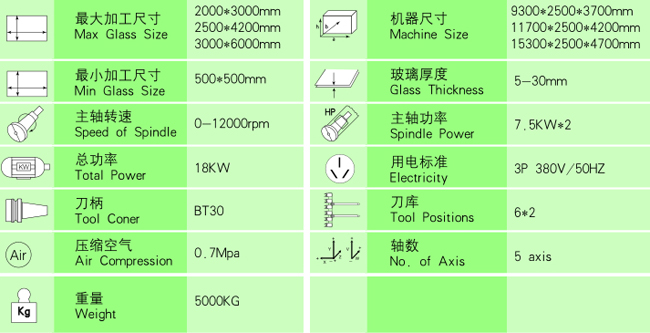

Technial parameters
